오일 냉각기(스핀들유용, 유압유니트용)
OIL COOLING UNIT(SPINDLE OIL & HYDRAULIC OIL)

spindle oil chiller
  • 특징

  • 환경기준과 안전성을 고려하여 제작한 CE인증 획득 제품

  • Digital 온도제어기를 채택한 정밀한 온도제어(±0.5℃)

  • 냉각 시스템을 채택하여 냉각수가 불필요

  • 사용자 냉매 선택 가능(R-134a, R-22, R-407c, R-410a)

  • 온도제어방식 선택 가능(고정형/동조형)

  • 제어 Panel의 용이한 동작

  • 용도

  • CNC 머시닝센터 / CNC 그라인드 / CNC 방전 가공기 / CNC 선반

  • Hydraulic/Lubricating Oil 기타 가공유 사용 공작 기계

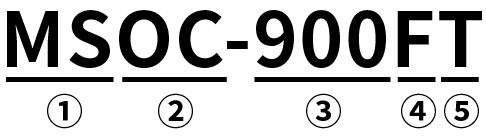

  • CODE EXPLANATION OF MODEL NAME
MSHC-30P20LT

  • ① MST CO., LTD

  • ② 냉각기 타입 (COOLER TYPE)

  • OC : 스핀들 & 유압유(SPINDLE & HYDRAULIC OIL)
    CC l : 절삭유 (COOLANT OIL)
    CH : 물 (WATER)

  • ③ 냉각용량 (COOLING CAPACITY)

  • 표참조 (TABLE #1)

  • ④ 순환펌프 (CIRCULATION PUMP)

  • F : 장착형 (PUMP TYPE)
    NP : 미장착형 (NO PUMP TYPE)

  • ⑤ 옵션 사양 (OPTION)

  • T : 탱크 (TANK)
    H : 히터 (HEATER)

  • SPECIFICATION
MODELMSOC-500ATMSOC-900FTMSOC-1000FMSOC-2000FMSOC-2500FMSOC-3000FMSOC-5000FMSOC-7500FMSOC-10000FMSOC-15000FMSOC-20000FMSOC-30000FMSOC-40000F
COOLING CAPACITY
(50/60Hz, kcal/h)		1080/12001900/24003000/38004000/48005000/60008000/900012000/1500019000/2250027000/3000040000/4500050000/6000080000/90000100000/120000
POWER
SOURCE(V)		220V220V220V220V220/380/440V220/380/440V220/380/440V220/380/440V220/380/440V220/380/440V220/380/440V220/380/440V220/380/440V
PHASE3 PHASE3 PHASE3 PHASE3 PHASE3 PHASE3 PHASE3 PHASE3 PHASE3 PHASE3 PHASE3 PHASE3 PHASE3 PHASE
CONDENSERCROSS FIN & TUBE TYPECROSS FIN & TUBE TYPECROSS FIN & TUBE TYPECROSS FIN & TUBE TYPECROSS FIN & TUBE TYPECROSS FIN & TUBE TYPECROSS FIN & TUBE TYPECROSS FIN & TUBE TYPECROSS FIN & TUBE TYPECROSS FIN & TUBE TYPECROSS FIN & TUBE TYPECROSS FIN & TUBE TYPECROSS FIN & TUBE TYPE
EVAPORATORPLATED HEAT EXCHANGERPLATED HEAT EXCHANGERPLATED HEAT EXCHANGERPLATED HEAT EXCHANGERPLATED HEAT EXCHANGERPLATED HEAT EXCHANGERPLATED HEAT EXCHANGERPLATED HEAT EXCHANGERPLATED HEAT EXCHANGERPLATED HEAT EXCHANGERPLATED HEAT EXCHANGERPLATED HEAT EXCHANGERPLATED HEAT EXCHANGER
COMPRESSOR(kW)0.40.60.751.21.52.23.75.67.511.31522.530
FAN MOTOR(W)6066100100100 X 2100 X 2200 X 2200 X 2200 X 2400 X 2750 X 3750 X 3750 X 3
OIL PUMP(kW)0.20.20.40.40.40.41.51.51.52.22.22.22.2
FLOW RATE(L/MIN)81630303035100100100250250300300
TEMP. RANGEAMBIENT TEMP. = 5℃~45℃, OIL TEMP.= 15℃~45℃AMBIENT TEMP. = 5℃~45℃, OIL TEMP.= 15℃~45℃AMBIENT TEMP. = 5℃~45℃, OIL TEMP.= 15℃~45℃AMBIENT TEMP. = 5℃~45℃, OIL TEMP.= 15℃~45℃AMBIENT TEMP. = 5℃~45℃, OIL TEMP.= 15℃~45℃AMBIENT TEMP. = 5℃~45℃, OIL TEMP.= 15℃~45℃AMBIENT TEMP. = 5℃~45℃, OIL TEMP.= 15℃~45℃AMBIENT TEMP. = 5℃~45℃, OIL TEMP.= 15℃~45℃AMBIENT TEMP. = 5℃~45℃, OIL TEMP.= 15℃~45℃AMBIENT TEMP. = 5℃~45℃, OIL TEMP.= 15℃~45℃AMBIENT TEMP. = 5℃~45℃, OIL TEMP.= 15℃~45℃AMBIENT TEMP. = 5℃~45℃, OIL TEMP.= 15℃~45℃AMBIENT TEMP. = 5℃~45℃, OIL TEMP.= 15℃~45℃
OIL VISCOSITY RANGEISO VG 2~32, OVER ISO IS OPTIONISO VG 2~32, OVER ISO IS OPTIONISO VG 2~32, OVER ISO IS OPTIONISO VG 2~32, OVER ISO IS OPTIONISO VG 2~32, OVER ISO IS OPTIONISO VG 2~32, OVER ISO IS OPTIONISO VG 2~32, OVER ISO IS OPTIONISO VG 2~32, OVER ISO IS OPTIONISO VG 2~32, OVER ISO IS OPTIONISO VG 2~32, OVER ISO IS OPTIONISO VG 2~32, OVER ISO IS OPTIONISO VG 2~32, OVER ISO IS OPTIONISO VG 2~32, OVER ISO IS OPTION
IN/OUT SIZEPT 1/2″/ PT 1/2″PT 3/4″/ PT 3/4″PT 1″/ PT 3/4″PT 1″/ PT 3/4″PT 1″/ PT 3/4″PT 1″/ PT 3/4″PT 1 1/4″/ PT 1 1/4″PT 1 1/4″/ PT 1 1/4″PT 1 1/4″/ PT 1 1/4″PT 2″/ PT 2″PT 2″/ PT 2″PT 2″/ PT 2″PT 2″/ PT 2″
DIMENSION(mm)394*498*943450*540*880510*610*943510*610*943550*650*983550*650*983730*760*1429750*1540*1358800*1540*1350900*1770*1701990*2020*17271000*2930*18031100*3230*1903
WEIGHT(Kg)60801301501802004204505001000120014001700
